Sometimes it is necessary to find the position of hidden metals within a concrete structure without any intrusive or damaging investigative operations, making verification extremely difficult.
欧宝不给提款John F Hunt的黑色金属扫描仪能够实现这些结构的无损检测，对象和钢筋识别，同时提供混凝土盖测量和定位定位钻孔。

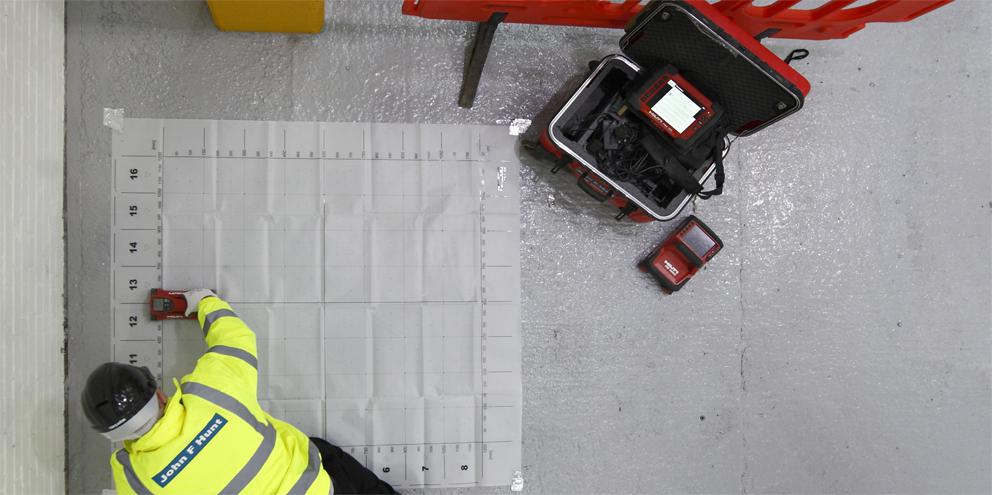

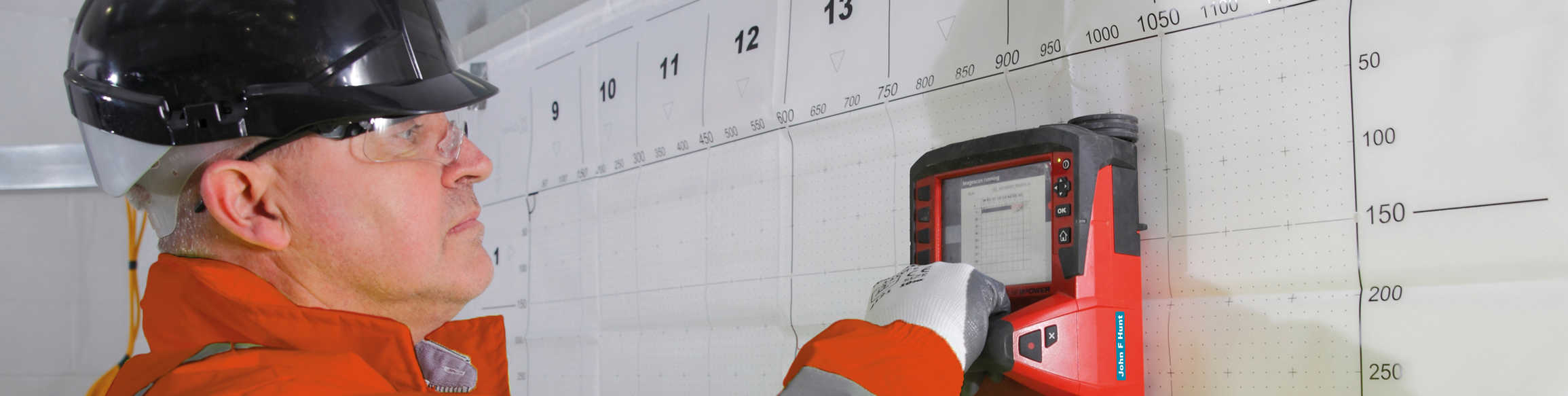

The PS 250 Ferrous Scanner is a magnetic induction detection device, which gives you visible results as to rebar content on a hand held screen. Our technical operative uses the portable unit to carry out structural analysis quickly and easily in a non destructive manner, whilst determining the coverage over the entire surface of any structure.
扫描数据自动记录长度高达30米，最多存储9个图像扫描。该装置提供精确的盖子测量深度，以便在高达100mm的深度上加固，显示在监视器上的增强件的清晰2D图像，用于现场结构分析和覆盖评估深度。
它非常宝贵：
- rebar verification and analysis.
- 检查大型区域的混凝土罩，用于结构维修工作。
- avoiding costly rebar hits and damage caused by cutting through structurally significant reinforcement when coring and hammer drilling.
- 结构评估报告的产生包括统计数据和视觉呈现，在2D / 3D视图中，最高可达45 x 45米。

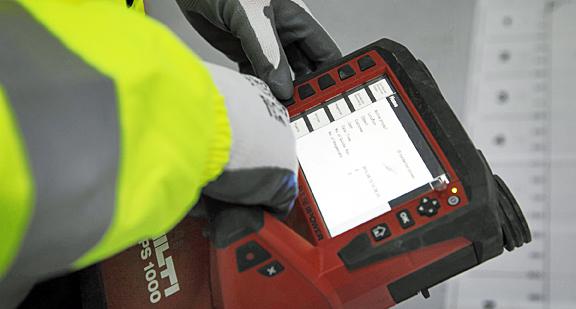

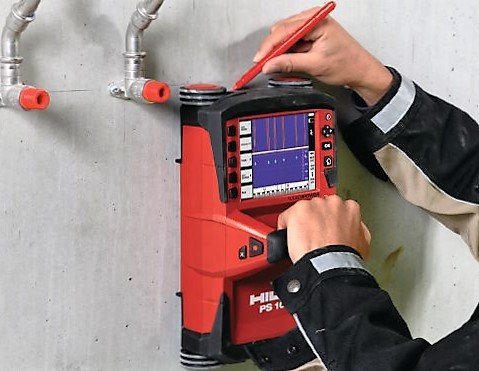

The PS 1000 X-Scanner provides a real-time view of the inside of concrete structures and generates true images automatically for direct on-site evaluation of scanned data with the availability for our technical operative to send it to your PC for subsequent evaluation and documentation.
它显示扫描的俯视图，用于易于对象映射，以及两个方向上的横截面，以便在混凝土结构中轻松识别多个层。
亚铁扫描仪可以帮助:
- 在钻锚孔或孔中，挖出开口和钻石芯片和锯切工作时，最小化击打隐藏物体的风险。
- 确定已安装后的钢筋连接中的准确钢筋扩展点。
- 在任何结构中提供楼层，甲板，板坯，墙壁和阳台等的检查。
- gives quality assessment and checks reinforcement and tensioning cables.
- enables concrete scanning and wall scanning via a wall metal detector system quickly and easily.

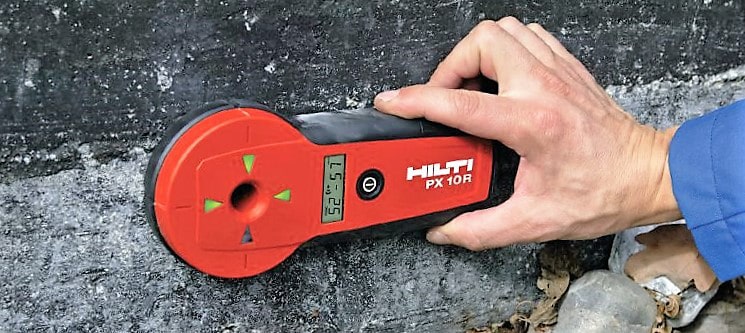

The PX10 Transpointer is a through wall, floor or slab locating device, which establishes the position of a point on both sides of the structure, without having to do intrusive drilling. The receiver is brought into alignment with the pre-set position of the transmitter to determine the distance between the two units.
The John F Hunt operator can then transfer reference points from one side of a wall to the other and at the same time, measure its thickness. This makes it easier to determine at which point a drill bit will exit the other side of a wall or floor, and what size drill bit should be used.
结合“斜坡适配器”，接收器可以从一个定点的给定参考建立出口点，或者可选地，两个给定点之间的角度。
The Transpointer allows for:
- drilling to be carried out quickly, efficiently and in exactly the right place.
- 消除架空钻探。
- 通过楼层和墙壁输送位置。
- transferring the starting point for drilling through-holes.
- determining the drill bit exit position and transferring drilling positions.
- 精确的墙壁和天花板厚度测量，便于选择右钻头或芯长度。
Should you wish for further information regarding the Ferrous Scanner, wall scanners, wall metal detectors or concrete scanning please call us on 01375 366748.
If you would like help regarding concrete cutting, core cutting, core drilling, diamond drilling, track sawing or our demolition contractors, please call us on
